Troubleshooting Windows AD join on Azure with Terraform

Recently, I experienced some issues when attempting to use terraform to join a Windows VM to an on-prem domain using JsonADDomain extension in a Hub & Spoke network. In this post, we'll examine the most frequent approaches to solving this issue in both Azure and Terraform.

To start off, we are going to use the JsonADDomainExtension for Terraform which is going to join our AD domain automatically by using the Azure VM extension.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22

resource "azurerm_virtual_machine_extension" "vm_adjoin" {
  name                 = "vm-adjoin"
  virtual_machine_id   = azurerm_windows_virtual_machine.vm.id
  publisher            = "Microsoft.Compute"
  type                 = "JsonADDomainExtension"
  type_handler_version = "1.3"

  settings = <<SETTINGS
    {
        "Name": "yourdomain.net",
        "OUPath": "OU=Servers,OU=Resources,DC=yourdomain,DC=net",
        "User": "admin@yourdomain.net",
        "Restart": "true",
        "Options": "3"
    }
  SETTINGS

  protected_settings = <<PROTECTED_SETTINGS
    {
        "Password": "${data.azurerm_key_vault_secret.adjoin.value}"
    }
  PROTECTED_SETTINGS

Error code 1355 / Event log event ID 4097 error 64

Output from the VM extension tab in Azure Portal

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14

[
    {
        "code": "ComponentStatus/JoinDomainException for Option 3 meaning 'User Specified'/failed/1",
        "level": "Error",
        "displayStatus": "Provisioning failed",
        "message": "ERROR - Failed to join domain='xxx.net', ou='OU=Servers,OU=Machines,DC=xxx,DC=net', user='adjoin@xxx.net', option='NetSetupJoinDomain, NetSetupAcctCreate' (#3 meaning 'User Specified'). Error code 1355"
    },
    {
        "code": "ComponentStatus/JoinDomainException for Option 1 meaning 'User Specified without NetSetupAcctCreate'/failed/1",
        "level": "Error",
        "displayStatus": "Provisioning failed",
        "message": "ERROR - Failed to join domain='xxx.net', ou='OU=TestServers,OU=Machines,DC=xxx,DC=net', user='adjoin@xxx.net', option='NetSetupJoinDomain' (#1 meaning 'User Specified without NetSetupAcctCreate'). Error code 1355"
    }
]

Terraform apply error: VMExtensionProvisioningError

1
2
3
4
5

 Error: Code="VMExtensionProvisioningError" Message="VM has reported a failure when processing extension 'p-vm-adjoin'. Error message: \"Exception(s) occured while joining Domain 'xxx-01.net'\"\r\n\r\nMore information on troubleshooting is available at https://aka.ms/vmextensionwindowstroubleshoot "
│
│   with azurerm_virtual_machine_extension.p_vm_adjoin,
│   on prod.tf line 204, in resource "azurerm_virtual_machine_extension" "p_vm_adjoin":
│  204: resource "azurerm_virtual_machine_extension" "p_vm_adjoin" {

Closely check the following:

Azure Route tables

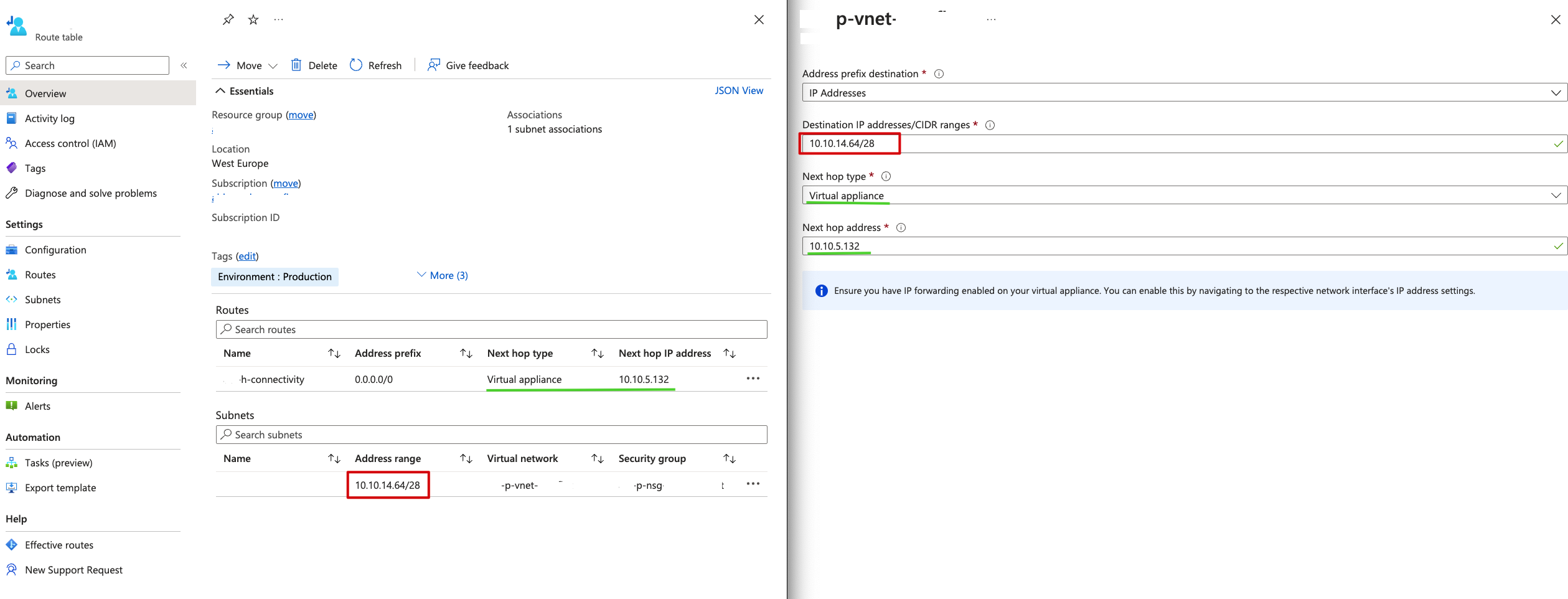

All hub-spoke VNETs need a pair of route tables going to the central FW. Check that both are set up correctly.

Azure FW Rules

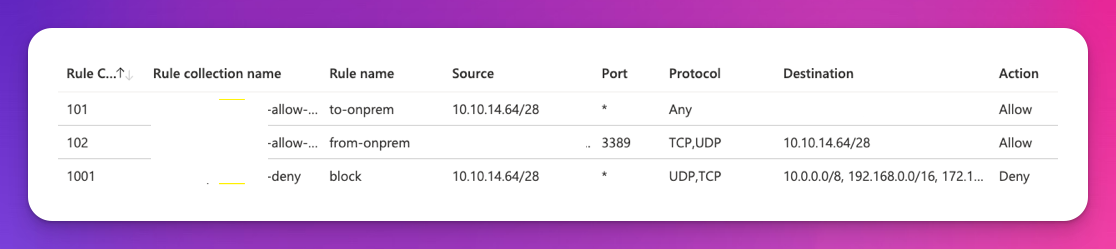

The VNET/subnet needs to be able to connect to the on-prem DCs for joining the domain. Make sure that the rules are set up correctly:

VNET Peering

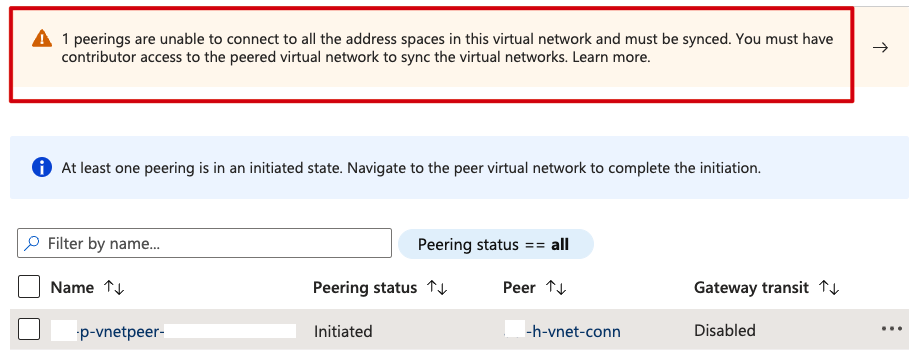

Check that both the Hub + Spoke VNETs have their individual peering in place. If you get an error message like this, it means that the peering is not working:

Additional troubleshooting

Windows domain joining requires the following ports to be opened. Check from the VM or using built-in azure tools.

Client Port(s) Server Port Service
1024-65535/TCP 135/TCP RPC Endpoint Mapper
1024-65535/TCP 1024-65535/TCP RPC for LSA, SAM, NetLogon (*)
1024-65535/TCP/UDP 389/TCP/UDP LDAP
1024-65535/TCP 636/TCP LDAP SSL
1024-65535/TCP 3268/TCP LDAP GC
1024-65535/TCP 3269/TCP LDAP GC SSL
53,1024-65535/TCP/UDP 53/TCP/UDP DNS
1024-65535/TCP/UDP 88/TCP/UDP Kerberos
1024-65535/TCP 445/TCP SMB
1024-65535/TCP 1024-65535/TCP FRS RPC (*)

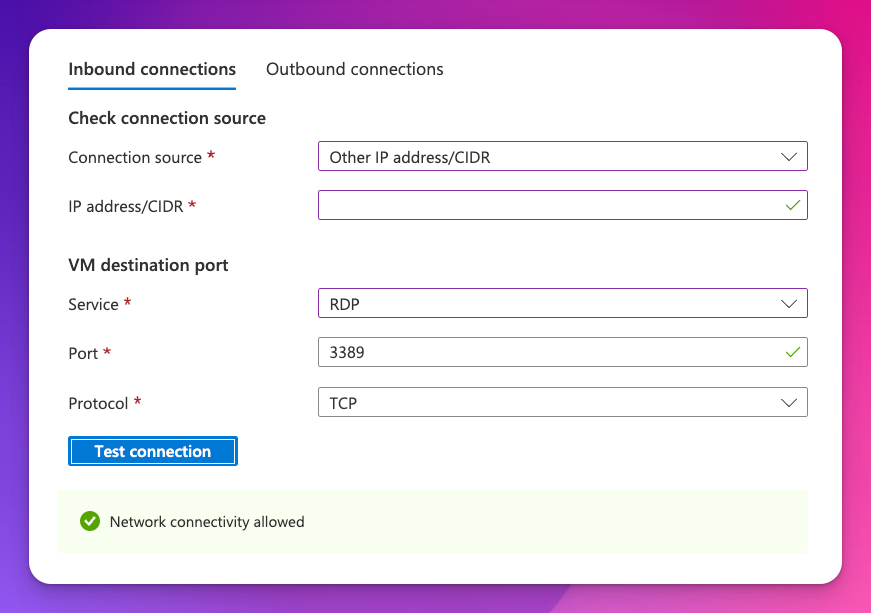

PS: Connection troubleshoot is a good tool.

AD Join manually to test

If the above points has been verified, the AD join should work as expected, but if not you might want to try joining the domain manually from the VM to troubleshoot. Domain join logs are best read from the stored location in Windows VMs:

%windir%\debug\Netsetup.log

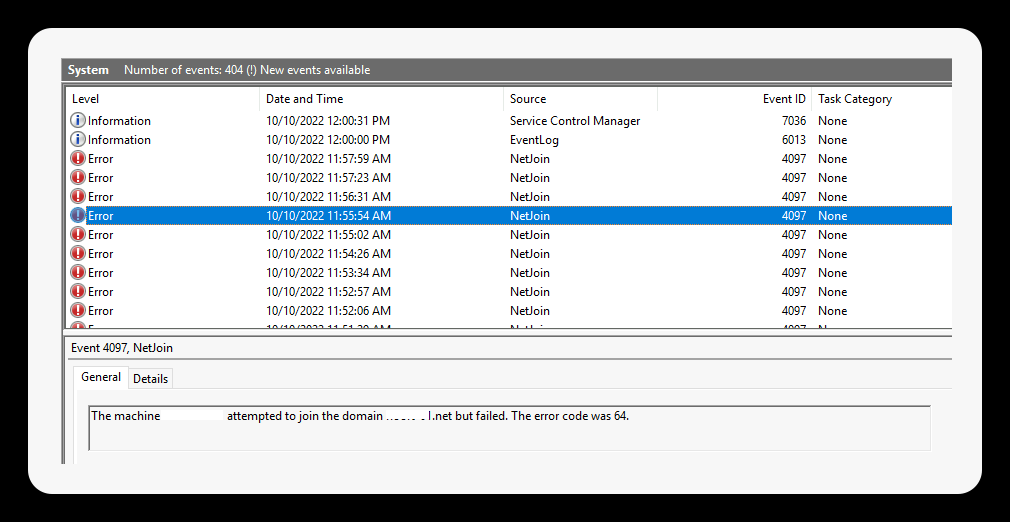

Event log: Error 64 event ID 4097

Manually testing joining the domain:

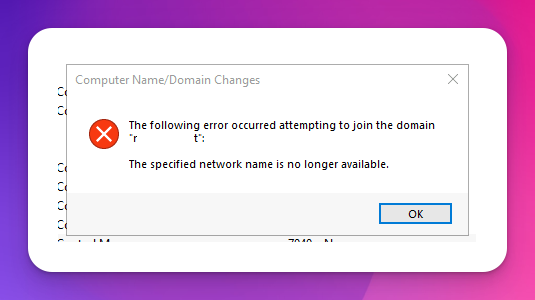

Error: The specified network name is no longer available

Resolution

In this case, it was missing a route table back from the hub that caused the packets to not come back to the VM. It was fixed by creating the missing route in the hub UDRs.
